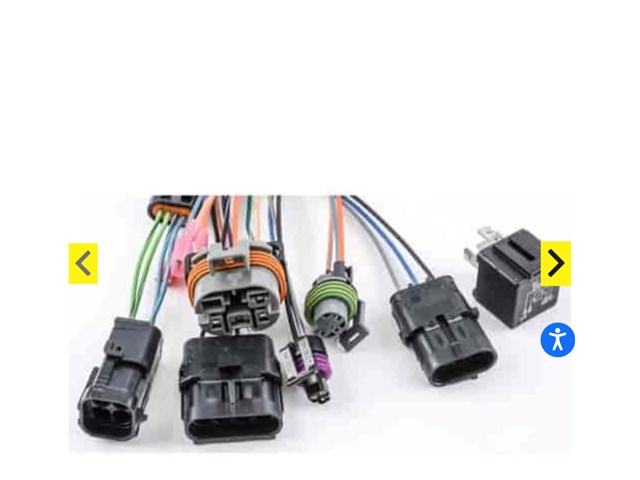

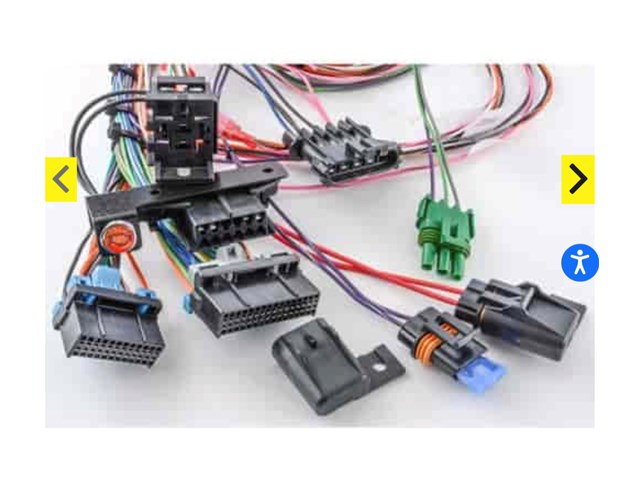

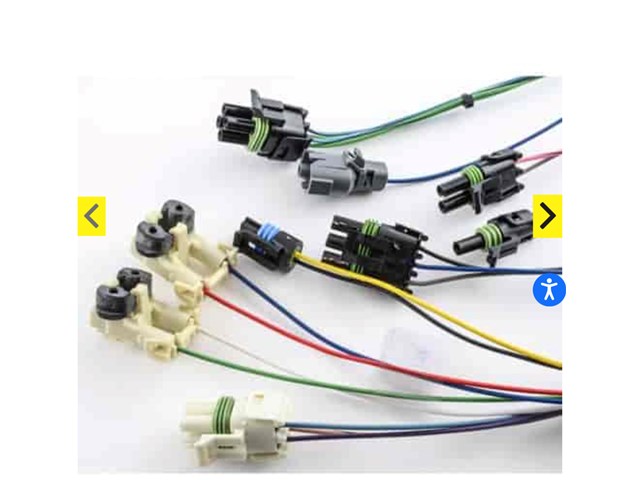

Painless Performance Products EFI Wiring Harness 1986-1993 GM Camaro, Firebird,

DETAILS:

EFI Wiring Harness 1986-93 GM 4.3/5.0/5.7/7.4L TBI This 764-60101 wiring harness has a length of 4 ft.* Between Engine and ECM, and contains circuits for: A/C Power Alternator Brake Switch Data Link Connector Distributor ECM EGR Valve Electronic Spark Control Module Engine Coolant Temperature Fuel Pump Fuel Pump Relay Fused System Power Grounds Idle Air Control Ignition Switch Signal (Fused) Ignition Timing Setting Injectors Knock Sensor Malfunction Indicator Lamp MAP Sensor O2 Sensor Oil Pressure Park/Neutral Indicator Switch Starter Throttle Position Sensor Torque Converter Clutch VSS * To mount the ECM under or behind the passenger seat, please use 764-60201 (8 ft. length between engine and ECM). Notes: This 60101 harness will not work with a 1994 or -1995 ECM and will not operate a 4L60E transmission. Requires the following mating parts: ECM #1227747, #16121154, or #88999146. Calpack #16060836, and a prom to match you engine: (4.3L) #16082087, (5.0L) #16139492, (5.7L) #16139566, (7.4L) #16128359. This Prom does not control any transmission or torque converter functions.
